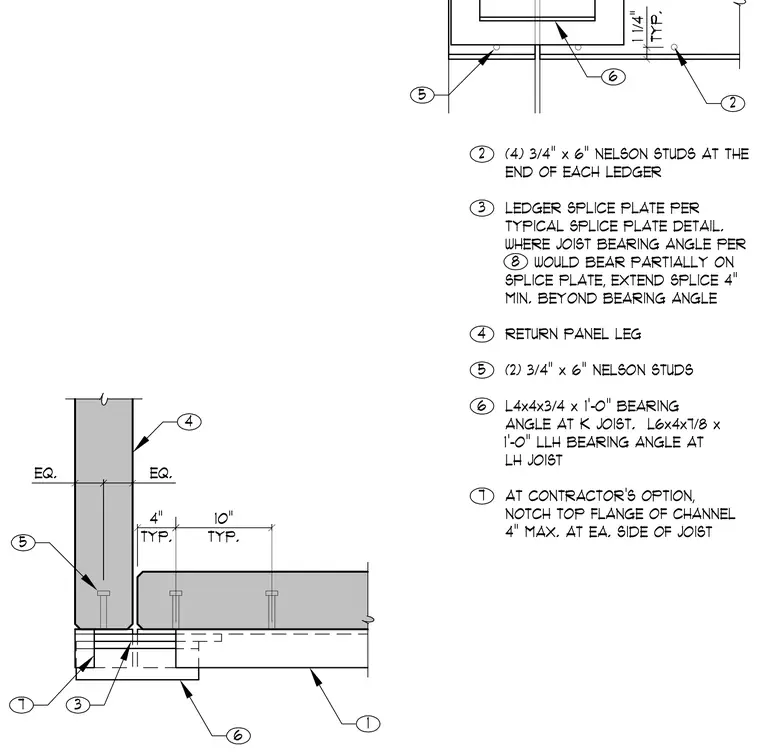

A ledger splice plate extends four inches minimum beyond the joist bearing angle where partial bearing would otherwise occur. The assembly incorporates a four-inch by four-inch by three-quarter-inch by one-foot-zero-inch bearing angle for K-joists, or a six-inch by four-inch by seven-eighths-inch by one-foot-zero-inch bearing angle for long-span (LH) and deep long-span (LLH) joists. Four three-quarter-inch by six-inch Nelson studs are positioned at the end of each ledger, complemented by two three-quarter-inch by six-inch Nelson studs nearby. The channel top flange may be notched a maximum of four inches on each side of the joist at the contractor's option, returning the panel leg as detailed.
4" TYP. 10" TYP. 1 1/4" TYP. EQ. EQ. 7 6 5 4 3 2 1 3 5 8 7 2 6 6 5 (4) 3/4" x 6" NELSON STUDS AT THE END OF EACH LEDGER LEDGER SPLICE PLATE PER TYPICAL SPLICE PLATE DETAIL. WHERE JOIST BEARING ANGLE PER WOULD BEAR PART1ALLY ON SPLICE PLATE, EXTEND SPLICE 4" MIN. BEYOND BEARING ANGLE RETURN PANEL LEG AT CONTRACTOR'S OPTION, NOTCH TOP FLANGE OF CHANNEL 4" MAX. AT EA. SIDE OF JOIST L4x4x3/4 x 1'-0" BEARING ANGLE AT K JOIST. L6x4x7/8 x 1'-0" LLH BEARING ANGLE AT LH JOIST (2) 3/4" x 6" NELSON STUDS 4
