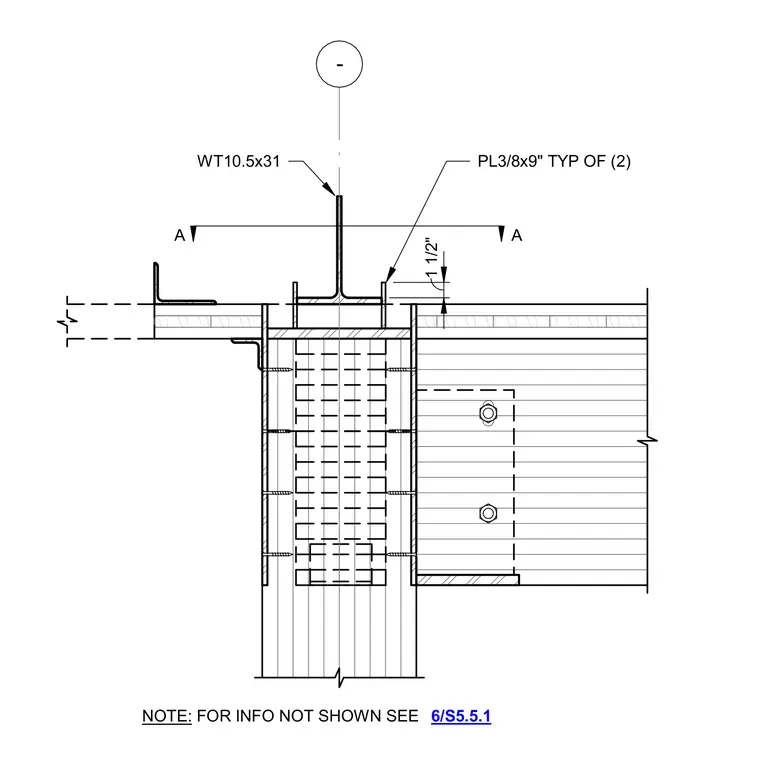

A WT10.5x31 structural tee shape connects with two three-eighths by nine-inch plates typical of two. Additional information is referenced on sheet 6/S5.5.1.
