Continuous Footing Step and Reinforcing Detail

Elements

Walls Floors / Slabs Foundations / Footings Stem Walls Anchors / Embeds Reinforcing

Connections

About this detail

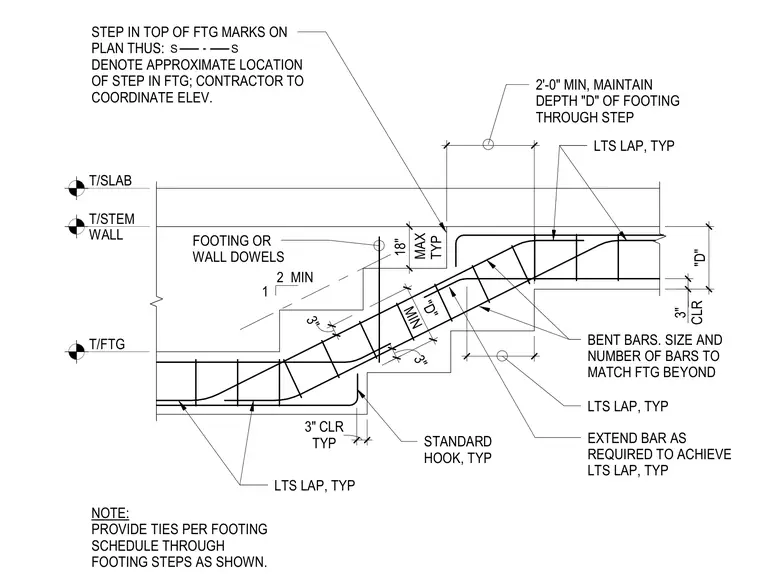

A stepped continuous concrete footing supports a stem wall and slab. Bent reinforcing bars match the size and number of the footing beyond, extending through the slope with required lap splices and standard hooks. Footing or wall dowels are spaced at eighteen inches maximum typical, maintaining a three-inch clear cover. A minimum depth "D" is maintained through the step, requiring ties per the footing schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
