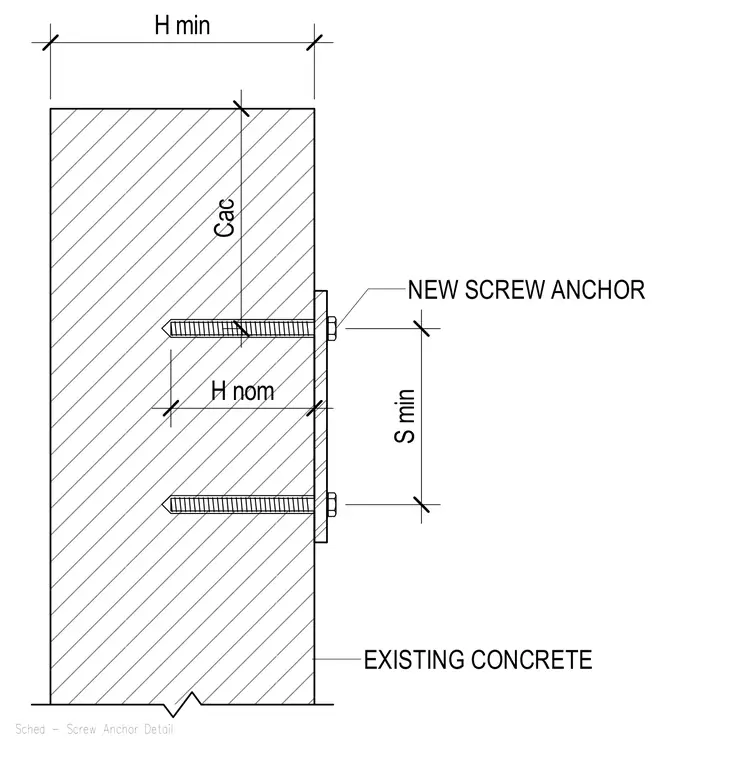

New screw anchors are installed into existing concrete with specified minimum edge distances and embedment depths. The drawing indicates nominal embedment depth H nom, minimum concrete thickness H min, critical edge distance Cac, and minimum anchor spacing S min. A base plate is secured to the concrete face using the specified screw anchors.
Sched - Screw Anchor Detail NEW SCREW ANCHOR EXISTING CONCRETE H nom Cac H min S min
