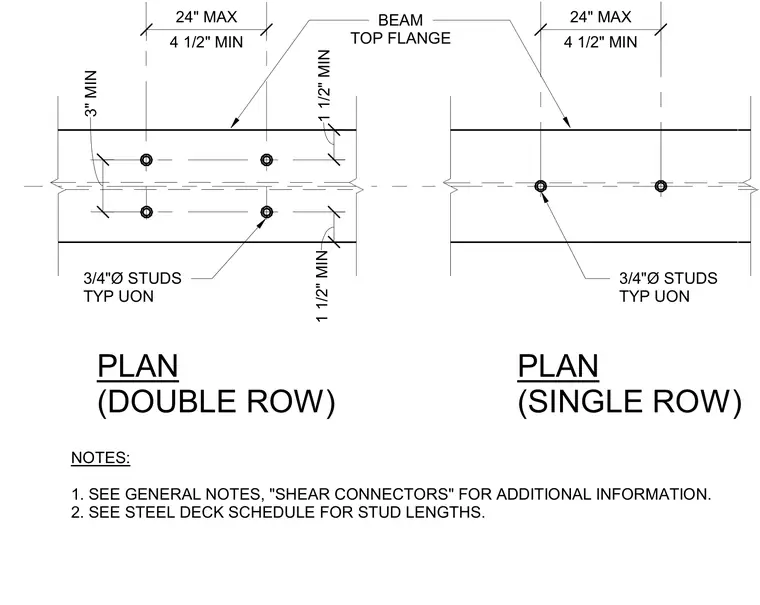

Single and double row layout configurations for three-quarter inch diameter shear studs welded to the top flange of a steel beam. Studs are spaced with minimum four-and-a-half inch and maximum twenty-four inch longitudinal dimensions. Transverse spacing requires a three-inch minimum for double rows and one-and-a-half inch minimum edge clearances. Stud lengths are coordinated with the steel deck schedule, and additional shear connector information is referenced in the general notes.
PLAN (DOUBLE ROW) PLAN (SINGLE ROW) NOTES: 1. SEE GENERAL NOTES, "SHEAR CONNECTORS" FOR ADDITIONAL INFORMATION. 2. SEE STEEL DECK SCHEDULE FOR STUD LENGTHS. BEAM TOP FLANGE 3/4"Ø STUDS TYP UON 4 1/2" MIN 24" MAX 4 1/2" MIN 24" MAX 3/4"Ø STUDS TYP UON 1 1/2" MIN 1 1/2" MIN 3" MIN
