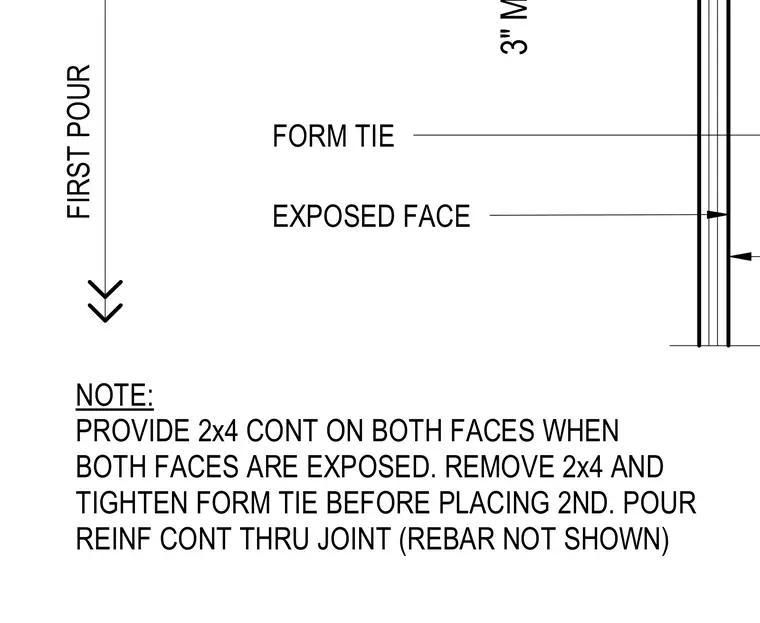

A horizontal construction joint in a reinforced concrete wall features continuous reinforcing running through the joint. A form tie is located at the top of the first pour at the exposed face. When both faces are exposed, continuous two-by-four blocking is required on both sides. The blocking must be removed and the form tie tightened before placing the second concrete pour.
FIRST POUR FORM TIE EXPOSED FACE NOTE: PROVIDE 2x4 CONT ON BOTH FACES WHEN BOTH FACES ARE EXPOSED. REMOVE 2x4 AND TIGHTEN FORM TIE BEFORE PLACING 2ND. POUR REINF CONT THRU JOINT (REBAR NOT SHOWN) 3" MAX
