Structural · S-DDXX9

Reinforcing Hook at Concrete Column or Wall Face

Materials

Concrete

Elements

Columns Walls Reinforcing

Connections

Rebar Splice / Development

About this detail

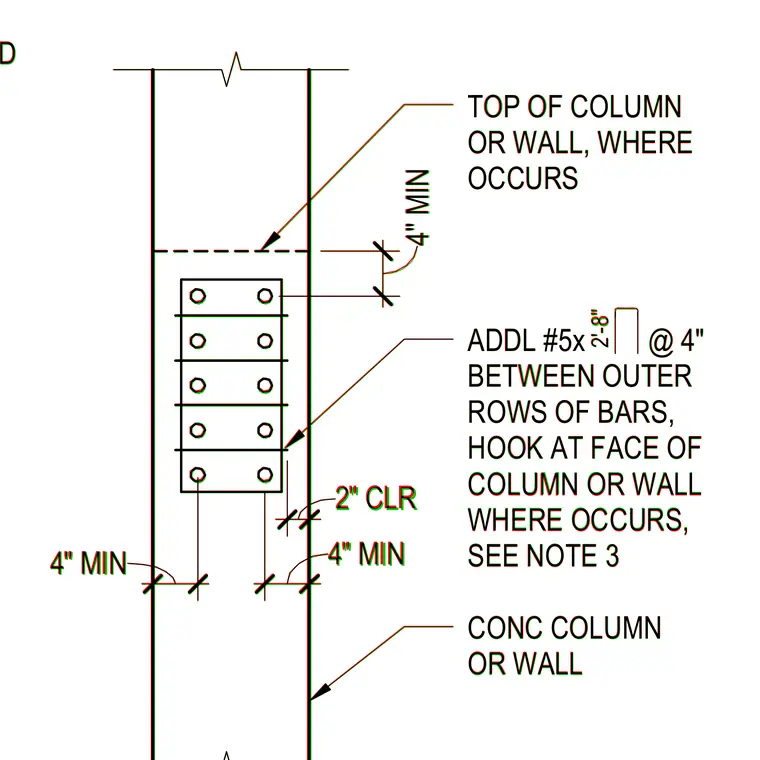

Additional number five bars spaced at four inches are placed between the outer rows of bars and hooked at the face of the concrete column or wall. A minimum four-inch clearance is maintained from the top of the column or wall, with a two-inch clear cover provided on the side face. Dimensions indicate a minimum four-inch spacing and a ten-inch minimum at headed reinforcing.
