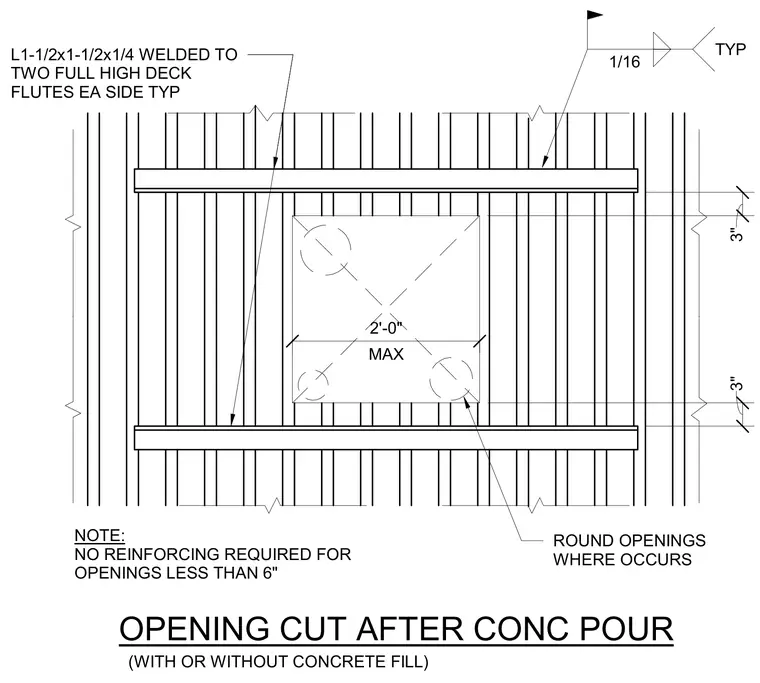

An L1-1/2x1-1/2x1/4 angle is welded to two full-height deck flutes on each side of the opening with a typical 1/16-inch fillet weld. The maximum square or rectangular opening size is limited to 2 feet. Round openings are provided where indicated, and no reinforcing is required for openings smaller than 6 inches.
OPENING CUT AFTER CONC POUR (WITH OR WITHOUT CONCRETE FILL) ROUND OPENINGS WHERE OCCURS L1-1/2x1-1/2x1/4 WELDED TO TWO FULL HIGH DECK FLUTES EA SIDE TYP 1/16 TYP NOTE: NO REINFORCING REQUIRED FOR OPENINGS LESS THAN 6" MAX 2'-0" 3" 3"
