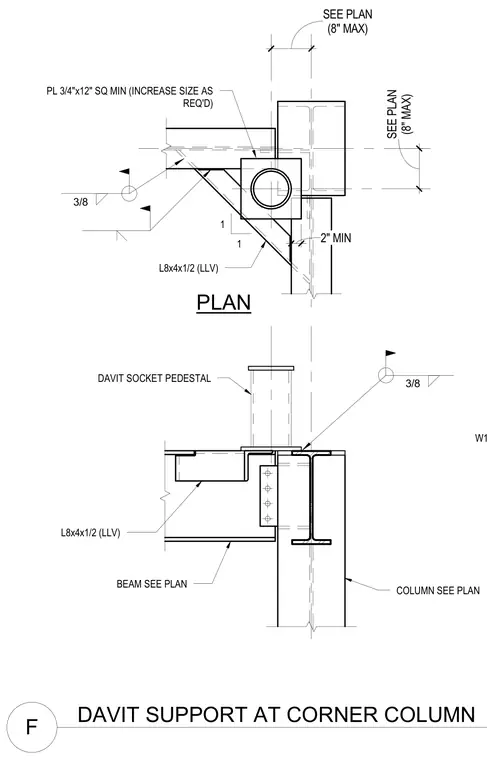

A davit socket pedestal is mounted atop a three-quarter-inch by twelve-inch square minimum base plate at the structural corner column. The supporting W12x26 beam connects to the column with a moment connection at each end utilizing a three-eighths-inch fillet weld. L8x4x1/2 angle bracing with long legs vertical supports the pedestal assembly off the framing. Clearances of two inches minimum and eight inches maximum are maintained per the structural plan.
DAVIT SUPPORT AT CORNER COLUMN F PLAN COLUMN SEE PLAN L8x4x1/2 (LLV) DAVIT SOCKET PEDESTAL BEAM SEE PLAN L8x4x1/2 (LLV) 1 1 PL 3/4"x12" SQ MIN (INCREASE SIZE AS REQ'D) W12x26 UON MOMENT CONN AT EACH END 3/8 (8" MAX) SEE PLAN (8" MAX) SEE PLAN 2" MIN 3/8
