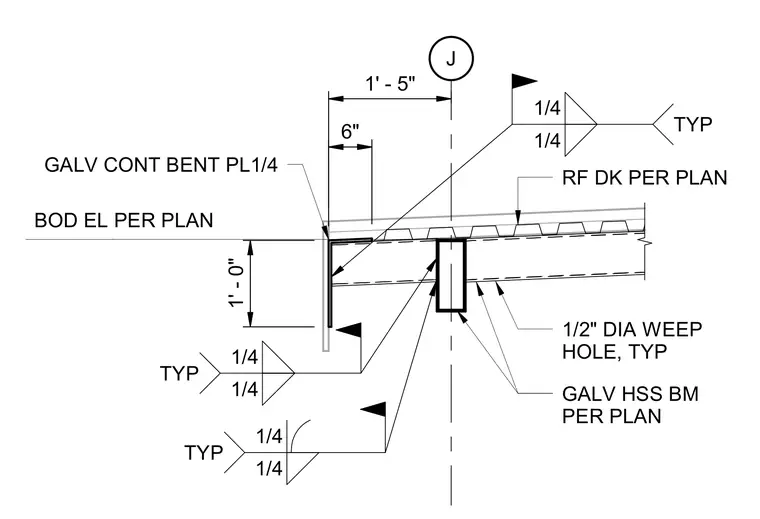

A galvanized continuous one-quarter-inch bent plate is secured to a galvanized hollow structural section beam and roof deck sized per plan. The assembly features one-quarter-inch fillet welds typical at connections and includes a one-half-inch diameter weep hole typical. The roof deck bears over the structural framing at a specified bottom of deck elevation.
J 1' - 5" RF DK PER PLAN 1/4 1/4 TYP 1/4 1/4 TYP 1/2" DIA WEEP HOLE, TYP GALV HSS BM PER PLAN 1' - 0" 6" GALV CONT BENT PL1/4 1/4 1/4 TYP BOD EL PER PLAN 113' - 4 1/2"
