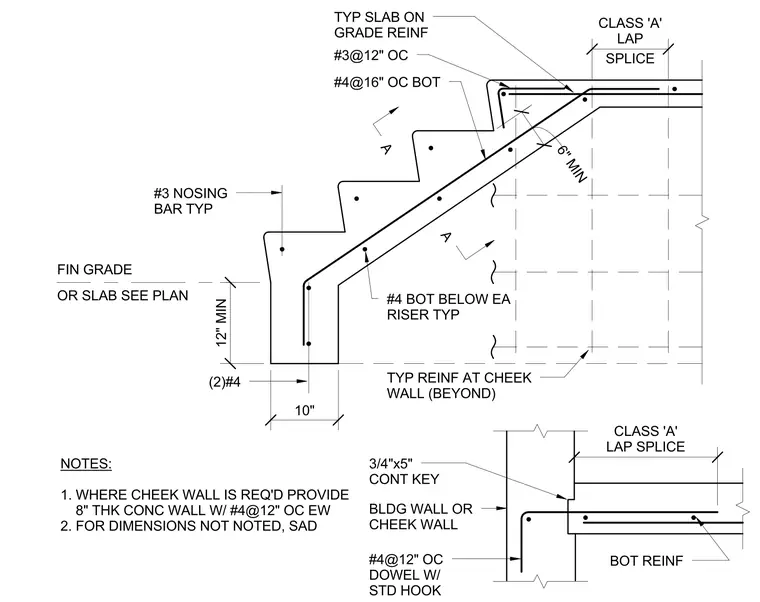

A concrete stair on grade is supported by a thickened footing with a ten-inch width and twelve-inch depth reinforced with two number four bars. The stair slab includes number four bottom reinforcing at sixteen inches on center, number three bars at twelve inches on center, and a number three nosing bar at each step, along with number four bottom reinforcing below each riser. A continuous three-quarter-inch by five-inch keyway connects the stair assembly to the building wall or cheek wall, tied with number four dowels at twelve inches on center featuring standard hooks and class A lap splices. Where a cheek wall is required, an eight-inch thick concrete wall with number four bars at twelve inches on center each way is provided.
A A #3@12" OC #4@16" OC BOT FIN GRADE (2)#4 BOT REINF TYP SLAB ON GRADE REINF #4 BOT BELOW EA RISER TYP TYP REINF AT CHEEK WALL (BEYOND) 3/4"x5" CONT KEY BLDG WALL OR CHEEK WALL #4@12" OC DOWEL W/ STD HOOK NOTES: 1. WHERE CHEEK WALL IS REQ'D PROVIDE 8" THK CONC WALL W/ #4@12" OC EW 2. FOR DIMENSIONS NOT NOTED, SAD OR SLAB SEE PLAN #3 NOSING BAR TYP SPLICE CLASS 'A' LAP 6" MIN 10" 12" MIN CLASS 'A' LAP SPLICE
