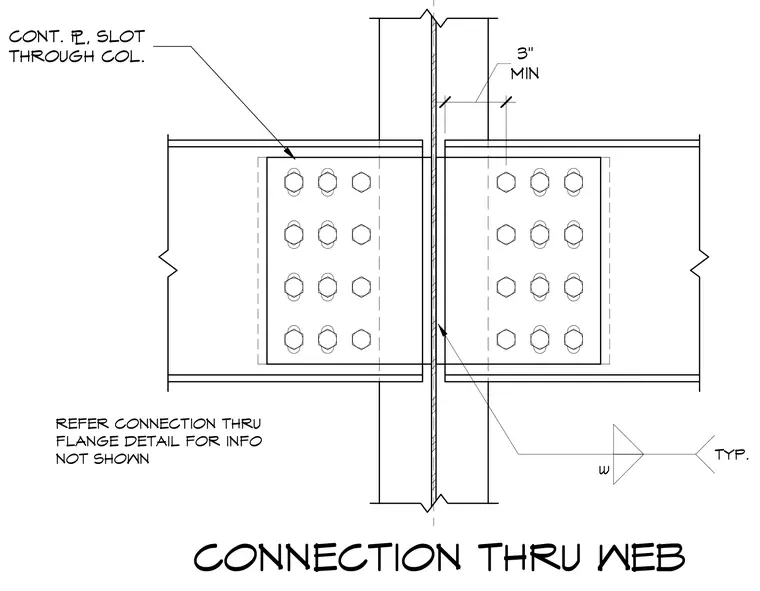

A continuous plate slots through the column web with a three-inch minimum clearance. Beams frame into both sides of the column and connect via structural bolts through a plate arrangement. Typical fillet welds secure the assembly components according to structural specifications.
w TYP. CONT. ¯, SLOT THROUGH COL. 3" MIN CONNECTION THRU WEB REFER CONNECTION THRU FLANGE DETAIL FOR INFO NOT SHOWN
