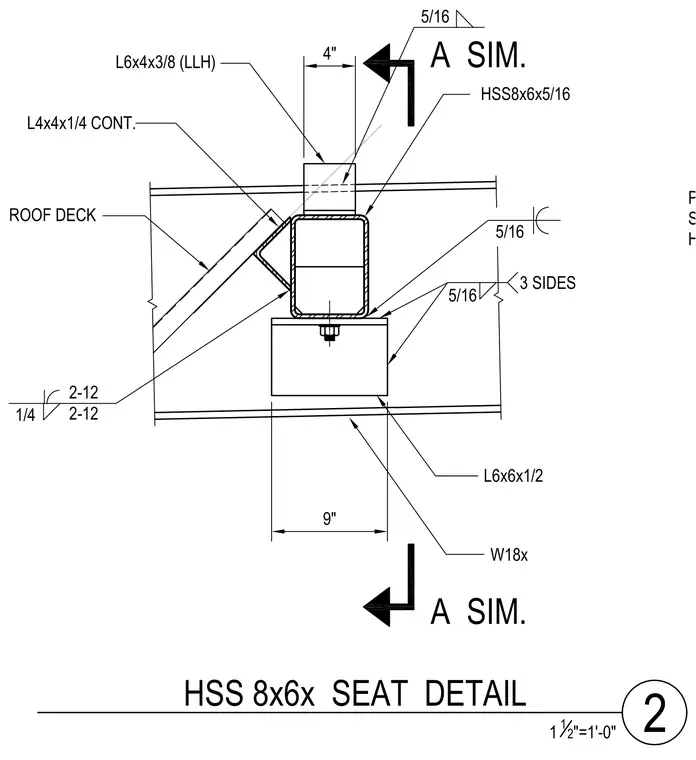

An HSS 8x6x5/16 hollow structural section beam bears upon a L6x6x1/2 angle seat attached to a W18 wide flange supporting member, welded with a five-sixteenths inch fillet weld on three sides. Inside the HSS member, a quarter-inch plate serves as a half-height internal stiffener. A continuous L4x4x1/4 angle connects to the side of the HSS to support the roof deck. A L6x3x3/8 long-leg-horizontal angle is positioned above with a four-inch dimension callout. Fillet welds of quarter-inch and five-sixteenths inch sizes secure the assembly components.
HSS 8x6x SEAT DETAIL 1 1 2 "=1'-0" 2 PL 1/4 INTERNAL STIFFENER HALF HEIGHT 5/16 L4x4x1/4 CONT. 1/4 2-12 2-12 ROOF DECK W18x 5/16 4" L6x4x3/8 (LLH) HSS8x6x5/16 9" L6x6x1/2 5/16 3 SIDES A SIM. A SIM.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
