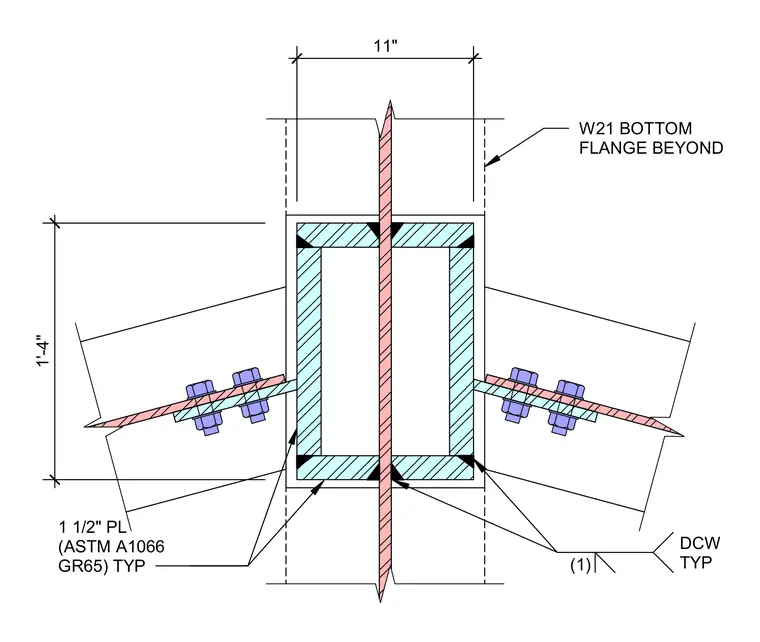

A hollow structural section member connects to intersecting steel elements with a one-and-a-half-inch ASTM A1066 Grade 65 plate typical on both sides. A continuous vertical plate passes through the center of the hollow structural section, secured with typical welds denoted as DCW. Bolted connections join the angled gusset plates to the structural flanges, with a W21 bottom flange extending beyond the main connection zone. Overall dimensions measure eleven inches wide by one foot four inches high.
