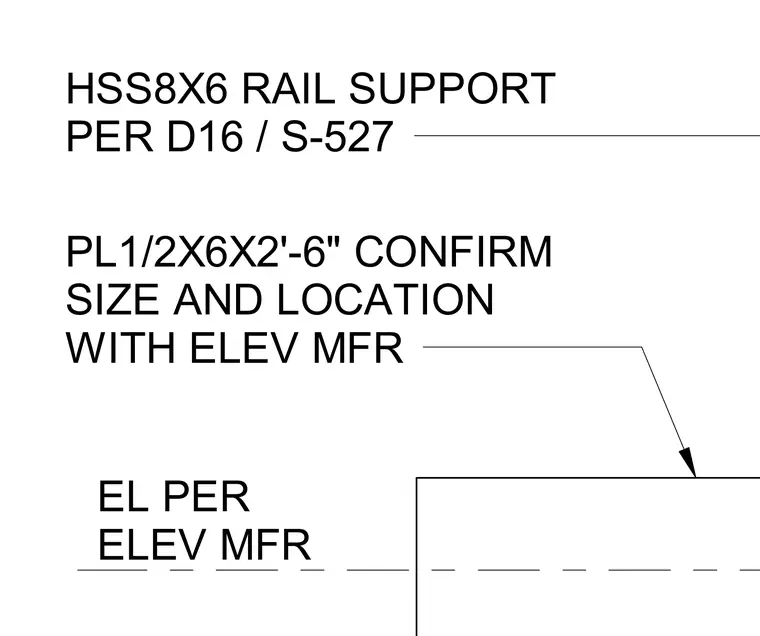

An HSS8x6 hollow structural section rail support connects to a one-half-inch by six-inch by two-foot-six-inch steel plate, with exact size and location confirmed by the elevator manufacturer. The elevation is set per the elevator manufacturer specifications.
PL1/2X6X2'-6" CONFIRM SIZE AND LOCATION WITH ELEV MFR HSS8X6 RAIL SUPPORT PER D16 / S-527 EL PER ELEV MFR
