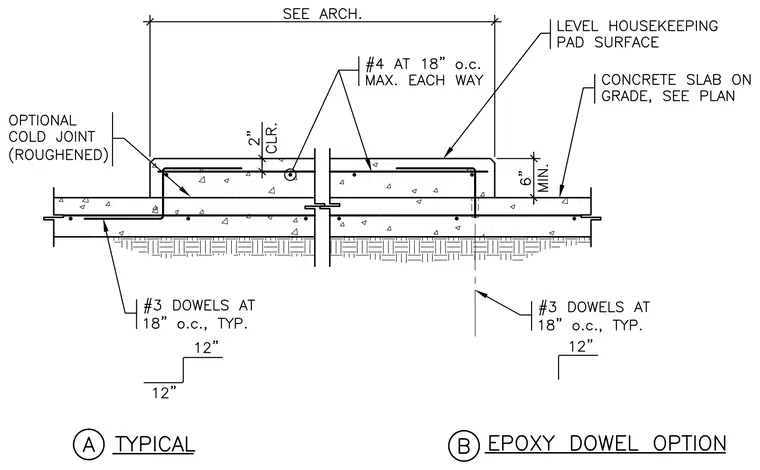

A concrete housekeeping pad bears on a concrete slab on grade, featuring number 4 reinforcing bars spaced at 18 inches on center maximum each way with 2 inches of clearance. The pad maintains a minimum thickness of 6 inches and includes a level housekeeping pad surface. Two alternative edge conditions are presented: option A utilizes number 3 dowels spaced at 18 inches on center typically with an optional roughened cold joint, while option B utilizes an epoxy dowel option with number 3 dowels spaced at 18 inches on center typically.
