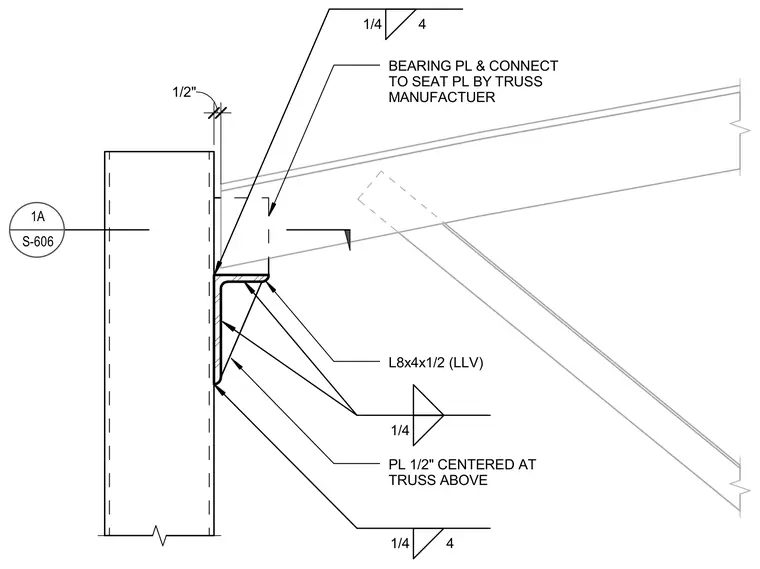

A steel roof truss frames into a vertical support via a seat angle and bearing plate connection. The support features a one-half-inch thick bearing plate centered at the truss above, welded with a quarter-inch fillet weld of four-inch length. An L8x4x1/2 angle with long leg vertical serves as the seat, welded to the support with a quarter-inch fillet weld. A one-half-inch clearance separates the truss end from the vertical support. The truss bearing plate and connection to the seat plate are provided by the truss manufacturer.
1/2" BEARING PL & CONNECT TO SEAT PL BY TRUSS MANUFACTUER L8x4x1/2 (LLV) 1/4 PL 1/2" CENTERED AT TRUSS ABOVE 1/4 4 1/4 4 1A S-606
