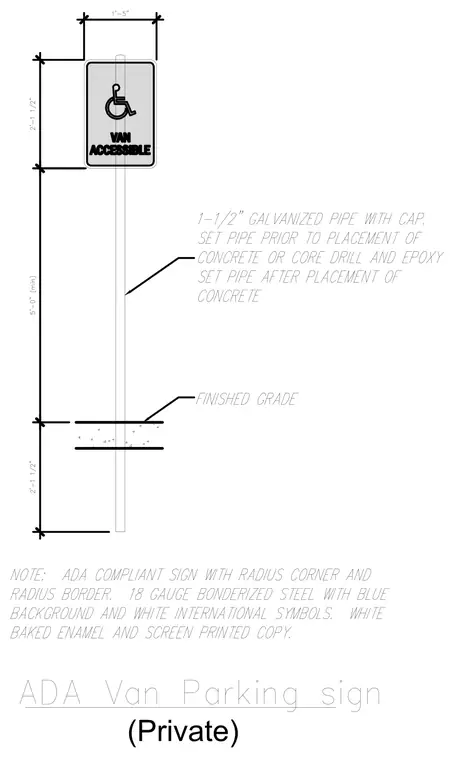

An ADA compliant van accessible parking sign with radius corner and radius border is mounted on a 1-1/2 inch galvanized pipe with a cap. The sign is constructed from 18 gauge bonderized steel featuring a blue background with white international symbols, white baked enamel, and screen printed copy. The support pipe is set prior to placement of concrete or core drilled and epoxy set after placement of concrete, extending to a depth of 2 feet 1-1/2 inches below the finished grade. The vertical clearance from the finished grade to the bottom of the sign measures 5 feet minimum, with an overall sign width of 1 foot 5 inches and a sign height of 2 feet 1-1/2 inches.
