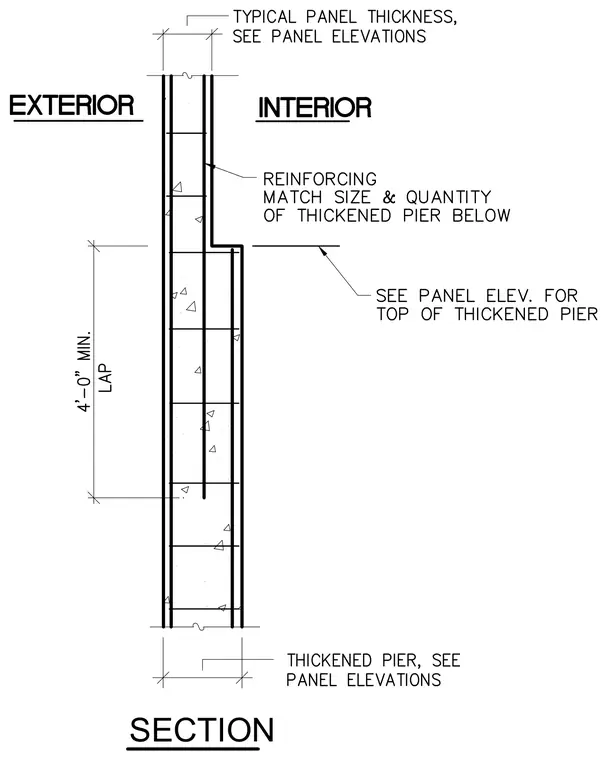

A vertical concrete wall transition features a thickened pier below. The reinforcing steel matches the size and quantity of the thickened pier below, providing a four-foot-zero-inch minimum lap splice. The panel thickness and top of the thickened pier are sized per the panel elevations.
