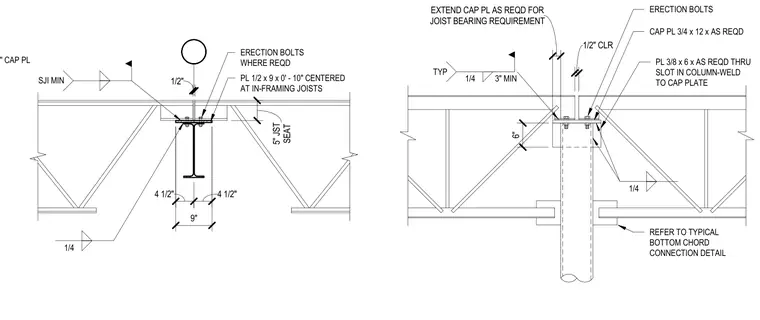

An LH-series open web steel joist bears on a supporting structural steel beam and hollow structural section column assembly. A three-quarter-inch by twelve-inch cap plate is welded to the top of the column with a three-eighths-inch plate extending through a slot in the column. In-framing joists are connected via a half-inch by nine-inch plate centered at the bearing location with erection bolts where required. Fillet welds of one-quarter-inch size secure the joist seat to the supporting plates with a half-inch clearance provided between adjacent joist ends.
3/8" CAP PL PL 3/8 x 6 x AS REQD THRU SLOT IN COLUMN-WELD TO CAP PLATE CAP PL 3/4 x 12 x AS REQD ERECTION BOLTS REFER TO TYPICAL BOTTOM CHORD CONNECTION DETAIL 1/4 JOIST BEARING REQUIREMENT EXTEND CAP PL AS REQD FOR 6" 1/2" CLR 1/4 3" MIN TYP SJI MIN 4 1/2" 4 1/2" 9" ERECTION BOLTS WHERE REQD PL 1/2 x 9 x 0' - 10" CENTERED AT IN-FRAMING JOISTS 1/4 SEAT 5" JST 1/2"
