A concrete equipment pad is cast directly onto a concrete slab supported by metal deck. The top of the slab is roughened to a one-quarter-inch amplitude to ensure bond. Reinforcing consists of number four bars at twelve inches on center each way, supplemented by number four dowels at twelve inches on center embedded with a twelve-inch lap length. Concrete cover maintains two inches at the top and one and one-half inches typical elsewhere. The pad profile requires a minimum five-inch height up to eight inches maximum, with a six-inch minimum set-back typical at the edge.

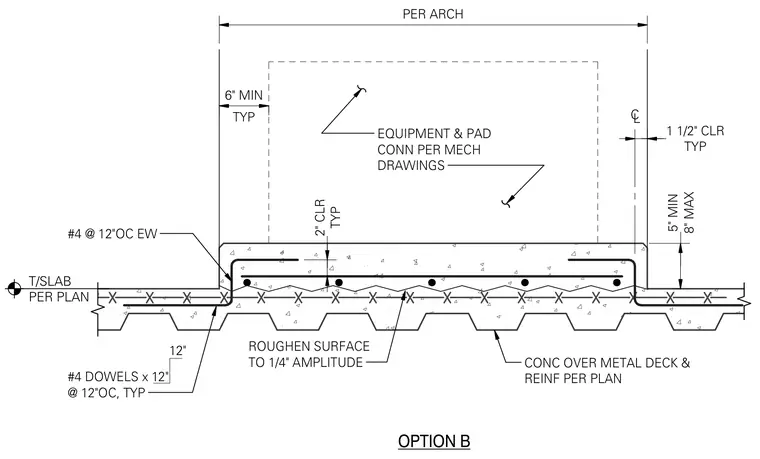

OPTION B T/SLAB PER PLAN #4 @ 12"OC EW PER ARCH TYP 6" MIN EQUIPMENT & PAD CONN PER MECH DRAWINGS ROUGHEN SURFACE TO 1/4" AMPLITUDE CONC OVER METAL DECK & REINF PER PLAN #4 DOWELS x 12" @ 12"OC, TYP 12" TYP 2" CLR C L TYP 1 1/2" CLR 8" MAX 5" MIN
