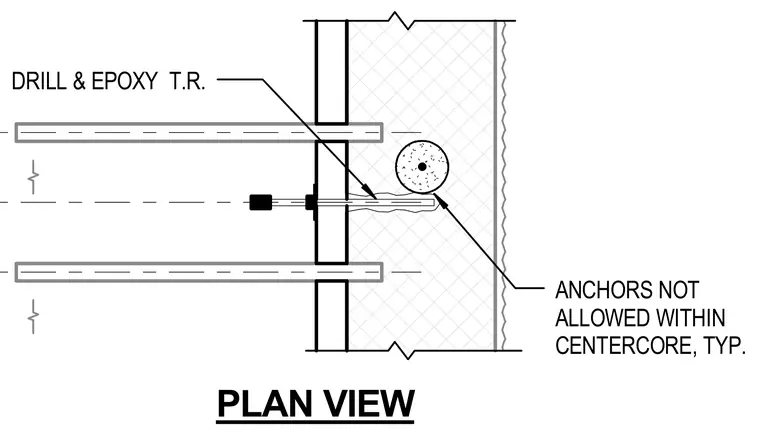

Drilled and epoxy threaded rod anchors are installed through a structural element, noting that anchors are not permitted within the centercore area typically.
DRILL & EPOXY T.R. PLAN VIEW ANCHORS NOT ALLOWED WITHIN CENTERCORE, TYP.
