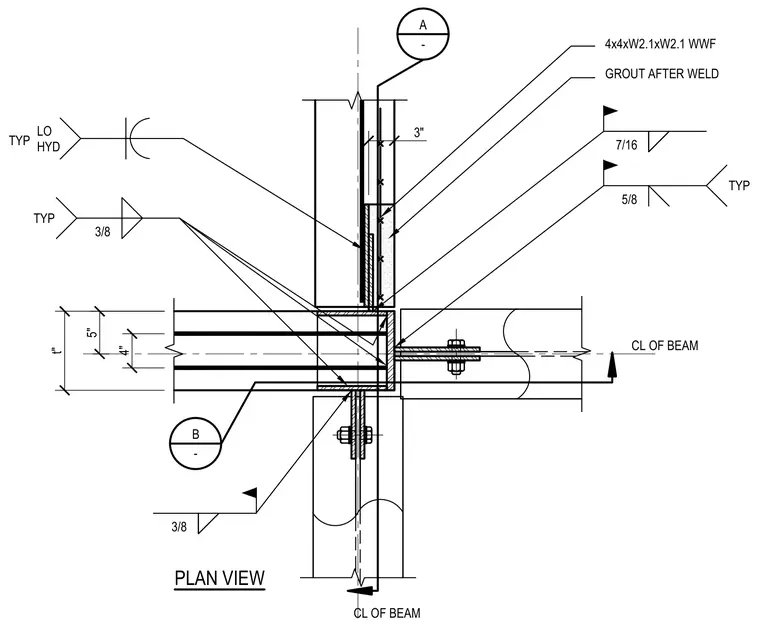

A structural beam frames into a masonry wall assembly with welded plate connections. Steel reinforcement wire fabric of 4x4-W2.1xW2.1 WWF is embedded within the masonry. Field welds with sizes specified at 7/16-inch and 5/8-inch tie the steel components together, followed by grout placement after welding. Low-hydrogen electrodes are specified typically for the welding process.
4" t" CL OF BEAM CL OF BEAM 3" B - A - 5" 3/8 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 7/16 3/8 TYP LO HYD TYP 5/8 PLAN VIEW TYP
