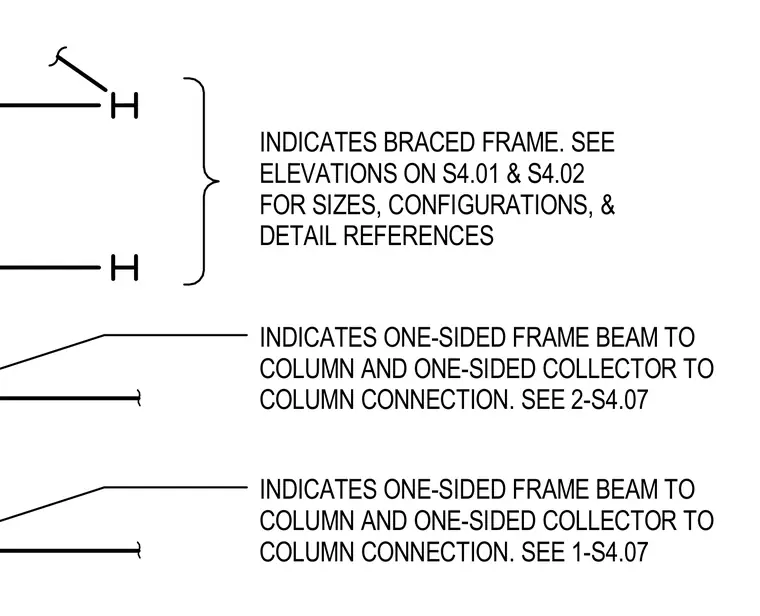

This diagram indicates a braced frame with specific member configurations and detail references shown on structural elevations S4.01 and S4.02. One-sided frame beam-to-column and one-sided collector-to-column connections are cross-referenced to details on sheet S4.07.
INDICATES BRACED FRAME. SEE ELEVATIONS ON S4.01 & S4.02 FOR SIZES, CONFIGURATIONS, & DETAIL REFERENCES INDICATES ONE-SIDED FRAME BEAM TO COLUMN AND ONE-SIDED COLLECTOR TO COLUMN CONNECTION. SEE 2-S4.07 INDICATES ONE-SIDED FRAME BEAM TO COLUMN AND ONE-SIDED COLLECTOR TO COLUMN CONNECTION. SEE 1-S4.07
