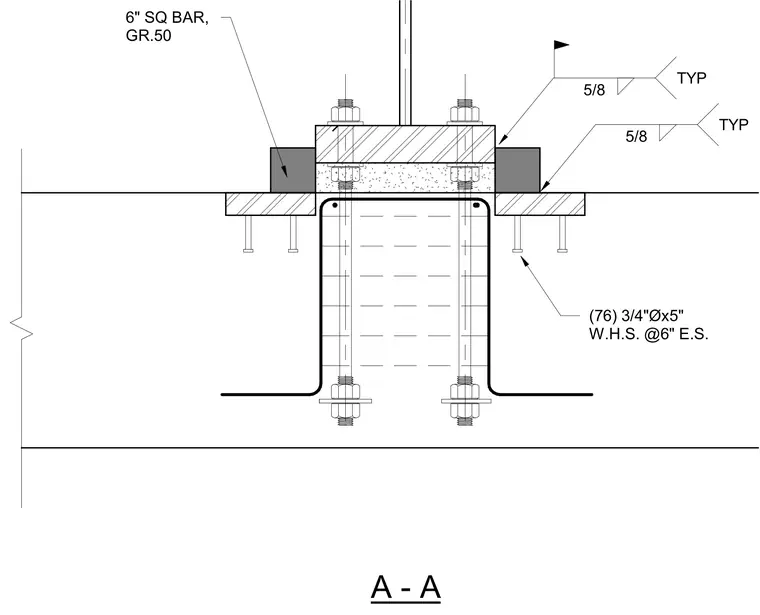

Seventy-six three-quarter-inch diameter by five-inch welded headed studs are spaced at six inches each side. A six-inch Grade 50 square bar bears against the structural steel plate assembly. Five-eighths-inch typical fillet welds secure the connection.
(76) 3/4"Øx5" W.H.S. @6" E.S. 6" SQ BAR, GR.50 A - A 5/8 TYP 5/8 TYP
