Typical Concrete Tilt-Up Wall at Footing Detail

Materials

Concrete Steel Masonry / CMU Membrane / Roofing

Elements

Walls Doors Windows Foundations / Footings Anchors / Embeds Connections / Plates

Connections

Welded Connection Embed Plate

About this detail

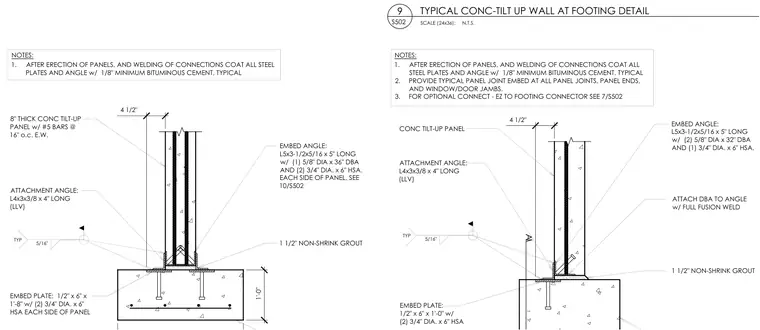

An eight-inch thick concrete tilt-up wall panel reinforced with number five bars at sixteen inches on center each way bears on a concrete footing with one and one-half inches of non-shrink grout beneath. An embed plate measuring one-half by six inches by one foot eight inches with two three-quarter inch diameter by six-inch headed stud anchors is cast into each side of the panel. An attachment angle measuring L4x3x3/8 by four inches long connects the panel to an embed angle measuring L5x3-1/2x5/16 by five inches long, secured with one five-eighth inch diameter by thirty-six-inch deformed bar anchor and two three-quarter inch diameter by six-inch headed stud anchors. All steel plates and angles are coated with a one-eighth inch minimum bituminous cement after erection and welding.
