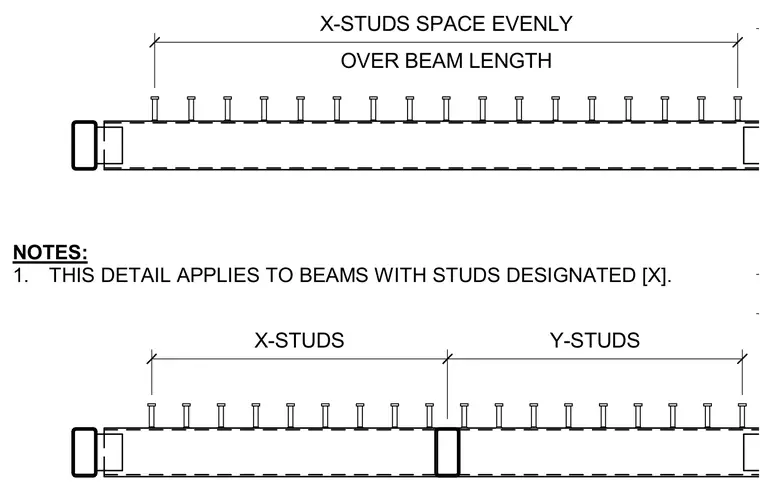

Shear studs are spaced evenly over the designated beam length in accordance with structural framing requirements. Additional notes specify that the detailing applies to beams with studs designated by specific project callouts. The configuration specifies both uniform stud distribution and segmented spacing layouts across designated beam spans.
NOTES: 1. THIS DETAIL APPLIES TO BEAMS WITH STUDS DESIGNATED [X]. X-STUDS Y-STUDS OVER BEAM LENGTH X-STUDS SPACE EVENLY
