Structural · S-DB4T4

CMU Wall at Concrete Mat Foundation

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

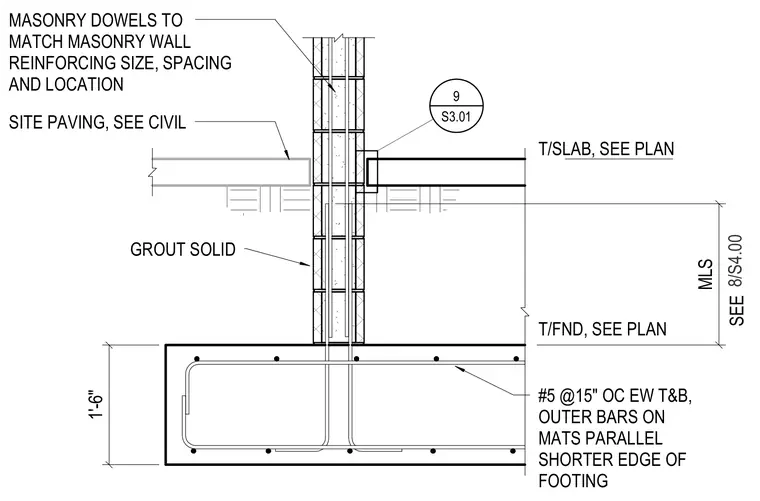

A concrete mat foundation supports a concrete masonry unit wall, with vertical masonry dowels extending from the footing to match the wall reinforcing size, spacing, and location. The foundation footing is one foot six inches deep and reinforced with number five bars at fifteen inches on center each way top and bottom, with outer bars on mats parallel to the shorter edge of the footing. The hollow masonry cells are grouted solid in the wall assembly. An adjacent concrete slab connects to the wall at a level coordinated with structural plans, and exterior site paving abuts the opposite side of the wall.
