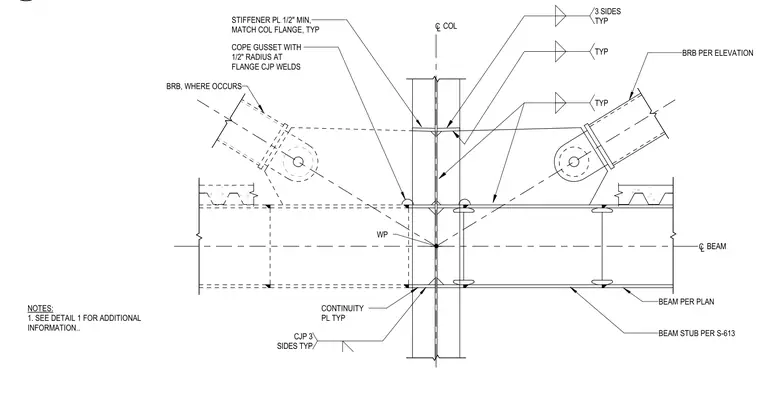

This structural detail shows buckling-restrained braces connected to a column web above a beam intersection. A gusset plate with a one-half inch radius cope is welded to the column flange using complete joint penetration welds on three sides. Continuity plates matching the column flange thickness are welded at the beam and brace locations. The assembly includes beam stubs sized per plan and requires reference to detail one for additional installation information.
3 SIDES TYP STIFFENER PL 1/2" MIN, MATCH COL FLANGE, TYP BRB PER ELEVATION TYP BRB, WHERE OCCURS NOTES: 1. SEE DETAIL 1 FOR ADDITIONAL INFORMATION.. WP COPE GUSSET WITH 1/2" RADIUS AT FLANGE CJP WELDS CJP 3 SIDES TYP CONTINUITY PL TYP TYP BEAM PER PLAN BEAM STUB PER S-613 C L COL C L BEAM
