Structural · S-DAZV8

Fall Arrest Anchor at CLT Panel and Steel Beam

Materials

Timber / Wood

Elements

Beams Bracing Anchors / Embeds

Connections

Bolted Connection

About this detail

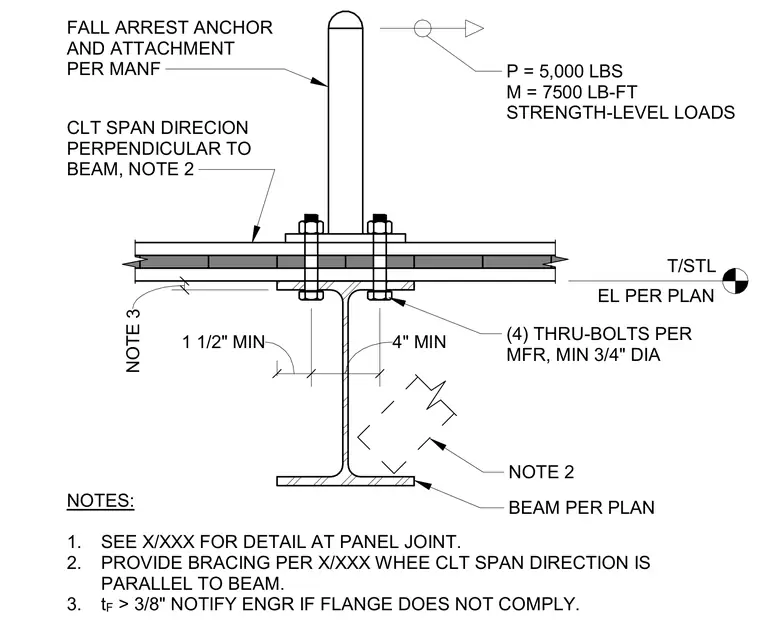

A fall arrest anchor and attachment sits atop a cross-laminated timber panel that spans perpendicularly to a supporting steel beam. The assembly is designed for strength-level loads of five thousand pounds axial force and seven thousand five hundred pound-feet moment. Four through-bolts, each minimum three-quarters inch diameter per manufacturer requirements, secure the anchor through the timber panel and a bearing plate. The steel beam flange requires a minimum thickness greater than three-eighths inch, with the engineer notified if compliance is not met.
