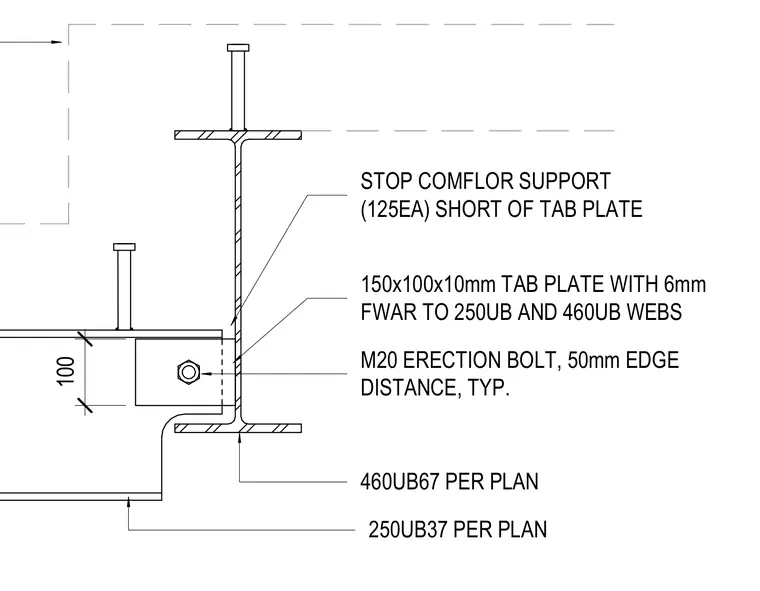

A 250UB37 beam frames into the web of a 460UB67 supporting beam sized per plan. A 150x100x10mm tab plate is welded to the webs with a 6mm fillet weld all around. An M20 erection bolt is installed with a 50mm typical edge distance. The Comflor metal deck support stops 125mm short of the tab plate.
STOP COMFLOR SUPPORT (125EA) SHORT OF TAB PLATE 250UB37 PER PLAN 460UB67 PER PLAN 150x100x10mm TAB PLATE WITH 6mm FWAR TO 250UB AND 460UB WEBS M20 ERECTION BOLT, 50mm EDGE DISTANCE, TYP. 100
