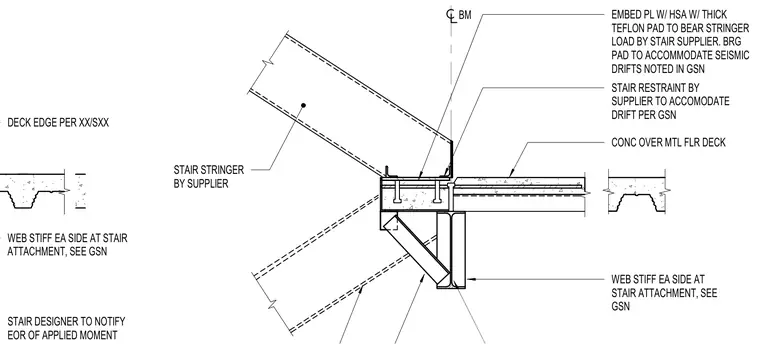

A stair stringer bears onto a thick Teflon bearing pad resting on an embed plate with HSA anchors cast into a concrete over metal floor deck assembly. The support framing utilizes web stiffeners on each side at the stair attachment to transfer loads to the underlying structural steel beam. A stair restraint by the supplier is detailed to accommodate seismic drift per general structural notes. The stair designer must notify the engineer of record of any applied moment.
WEB STIFF EA SIDE AT STAIR ATTACHMENT, SEE GSN DECK EDGE PER XX/SXX STAIR DESIGNER TO NOTIFY EOR OF APPLIED MOMENT BM CONC OVER MTL FLR DECK EMBED PL W/ HSA W/ THICK TEFLON PAD TO BEAR STRINGER LOAD BY STAIR SUPPLIER. BRG PAD TO ACCOMMODATE SEISMIC DRIFTS NOTED IN GSN STAIR STRINGER BY SUPPLIER WEB STIFF EA SIDE AT STAIR ATTACHMENT, SEE GSN STAIR RESTRAINT BY SUPPLIER TO ACCOMODATE DRIFT PER GSN
