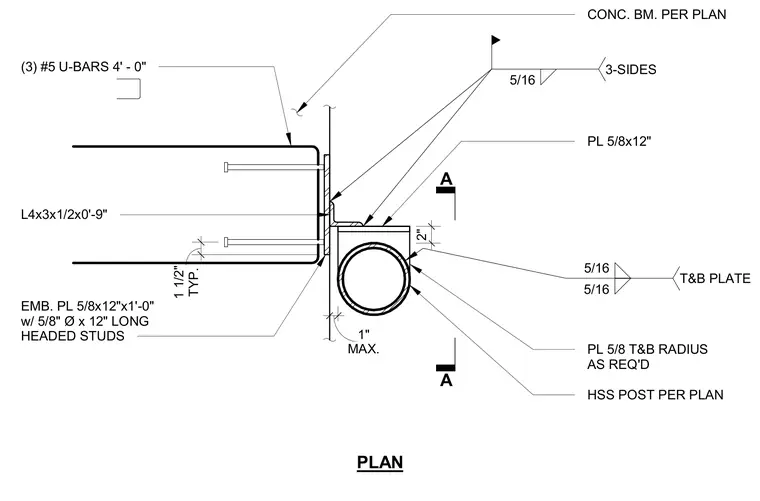

An HSS post connects to a concrete beam per plan utilizing an embedded steel plate measuring five-eighths by twelve inches by one foot long, anchored with five-eighths inch diameter by twelve inch long headed studs and three number five U-bars extending four feet on three sides. A structural steel angle measuring L4x3x1/2 by nine inches in length is welded to the embedded plate. A five-eighths inch top and bottom plate with a radiused edge as required is welded to the HSS post and the angle with five-sixteenths inch fillet welds on three sides.
PLAN A A 2" TYP. 1 1/2" CONC. BM. PER PLAN L4x3x1/2x0'-9" PL 5/8x12" PL 5/8 T&B RADIUS AS REQ'D HSS POST PER PLAN MAX. 1" EMB. PL 5/8x12"x1'-0" w/ 5/8" Ø x 12" LONG HEADED STUDS (3) #5 U-BARS 4' - 0" 3-SIDES 5/16 T&B PLATE 5/16 5/16
