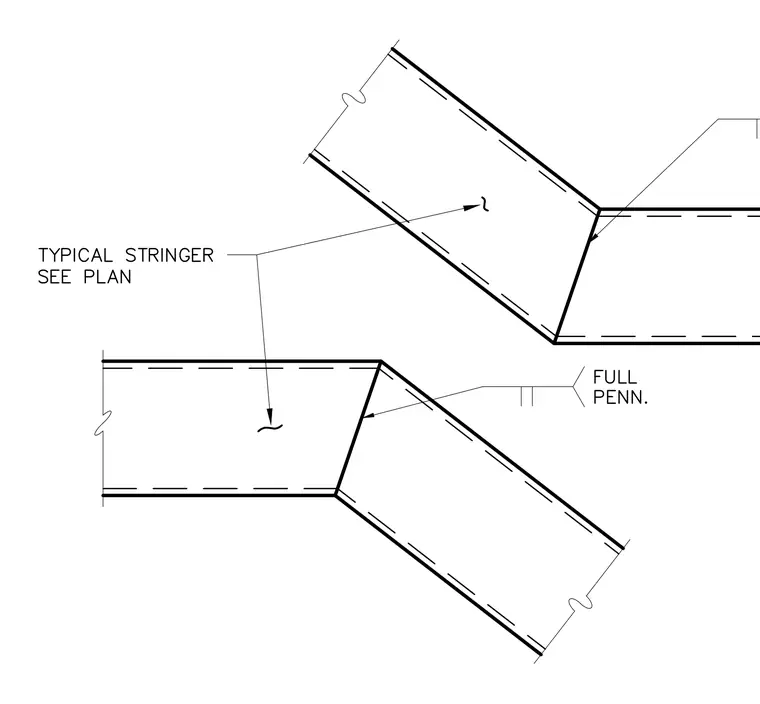

The stair stringers are sized per plan and mitered at the corner change in direction. The mitered joint is joined continuously with a full penetration weld.
