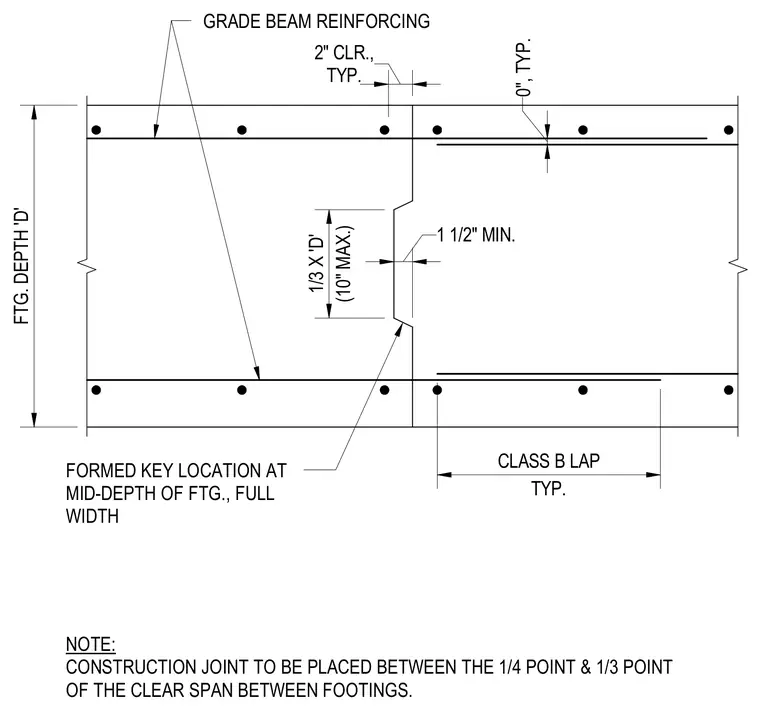

A concrete grade beam includes a full-width formed keyway located at the mid-depth of the footing, sized to one-third of the footing depth with a ten-inch maximum dimension and a one-and-a-half-inch minimum projection. Grade beam reinforcing bars continue across the joint with a typical Class B lap splice and maintain a two-inch typical clear cover. Construction joints are placed between the one-fourth point and one-third point of the clear span between footings.
FTG. DEPTH 'D' 1 1/2" MIN. 0", TYP. FORMED KEY LOCATION AT MID-DEPTH OF FTG., FULL WIDTH GRADE BEAM REINFORCING (10" MAX.) 1/3 X 'D' TYP. CLASS B LAP NOTE: CONSTRUCTION JOINT TO BE PLACED BETWEEN THE 1/4 POINT & 1/3 POINT OF THE CLEAR SPAN BETWEEN FOOTINGS. TYP. 2" CLR.,
