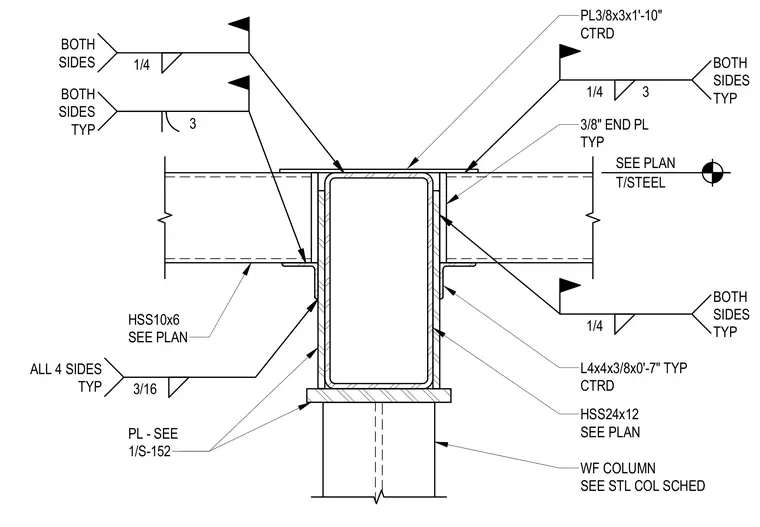

An HSS24x12 column supports horizontal HSS10x6 members sized per plan. Connection is achieved using a 3/8-inch end plate welded to the HSS members with a quarter-inch fillet weld on both sides, reinforced by typical L4x4x3/8 by 0-foot-7-inch angles centered below. Additional plates per sheet 1/S-152 tie into a wide-flange column specified in the structural column schedule. All welds are specified with field weld indicators and specific sizes, including 3/16-inch welds around four sides of the reinforcing elements.
T/STEEL SEE PLAN 1/4 BOTH SIDES TYP L4x4x3/8x0'-7" TYP CTRD HSS24x12 SEE PLAN HSS10x6 SEE PLAN 3/16 ALL 4 SIDES TYP 3 BOTH SIDES TYP 1/4 BOTH SIDES 1/4 3 BOTH SIDES TYP PL3/8x3x1'-10" CTRD 3/8" END PL TYP PL - SEE 1/S-152 WF COLUMN SEE STL COL SCHED
