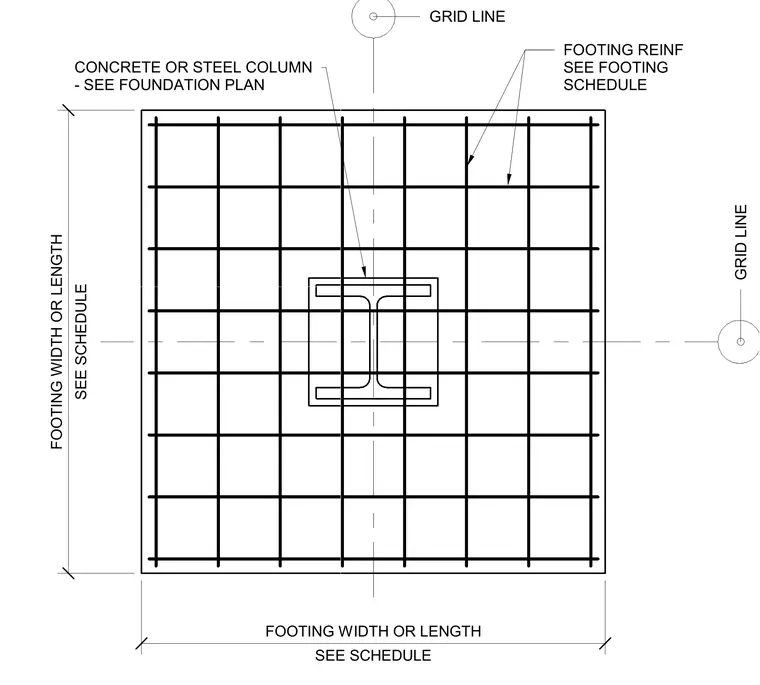

A square concrete footing is centered on orthogonal grid lines with footing width and length sized per the structural schedule. A concrete or steel column rests at the center of the footing per the foundation plan. Footing reinforcement consists of a two-way orthogonal grid of reinforcing bars spaced throughout the pad. Reinforcement sizes and spacing are specified in the footing schedule.
GRID LINE GRID LINE FOOTING REINF SEE FOOTING SCHEDULE CONCRETE OR STEEL COLUMN - SEE FOUNDATION PLAN SEE SCHEDULE FOOTING WIDTH OR LENGTH SEE SCHEDULE FOOTING WIDTH OR LENGTH
