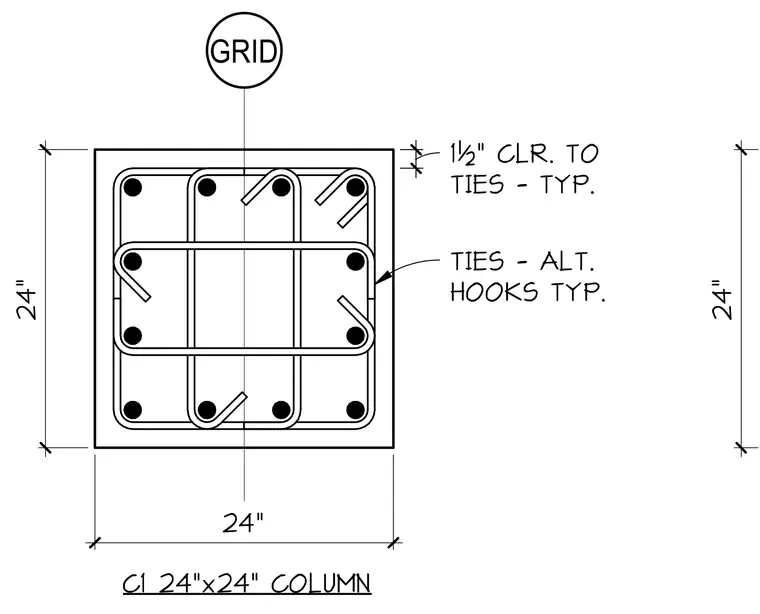

This concrete column measures twenty-four inches by twenty-four inches and maintains a one-and-one-half-inch clearance to the ties typically. Internal reinforcement ties feature alternating hook placements typically. The column is aligned with a structural grid line.
C1 24"x24" COLUMN 1½" CLR. TO TIES - TYP. GRID TIES - ALT. HOOKS TYP. 24" 24" 24" 1 1/2"
