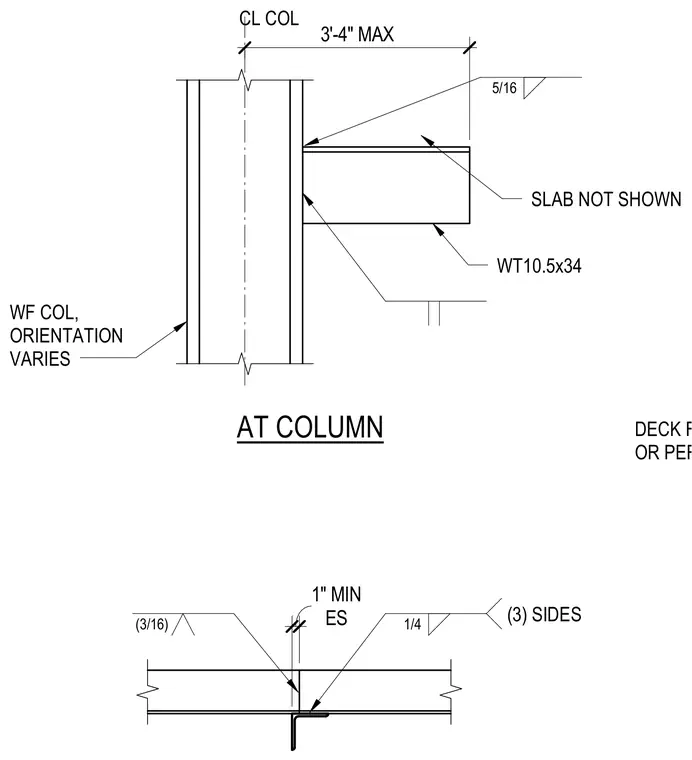

A WT10.5x34 structural tee frames into a wide-flange column with varying orientation at a maximum distance of 3'-4" from the column centerline. The WT section connects with a 5/16 fillet weld at the top and a 1/4 fillet weld on three sides. A separate angle detail shows a 3/16 fillet weld and a 1/4 fillet weld on three sides with a 1" minimum edge spacing, accommodating deck flutes running either parallel or perpendicular to the edge beam.
CL COL 3'-4" MAX WF COL, ORIENTATION VARIES SLAB NOT SHOWN WT10.5x34 5/16 AT COLUMN ES 1" MIN (3) SIDES 1/4 (3/16) DECK FLUTES PARALLEL OR PERP TO EDGE BM
