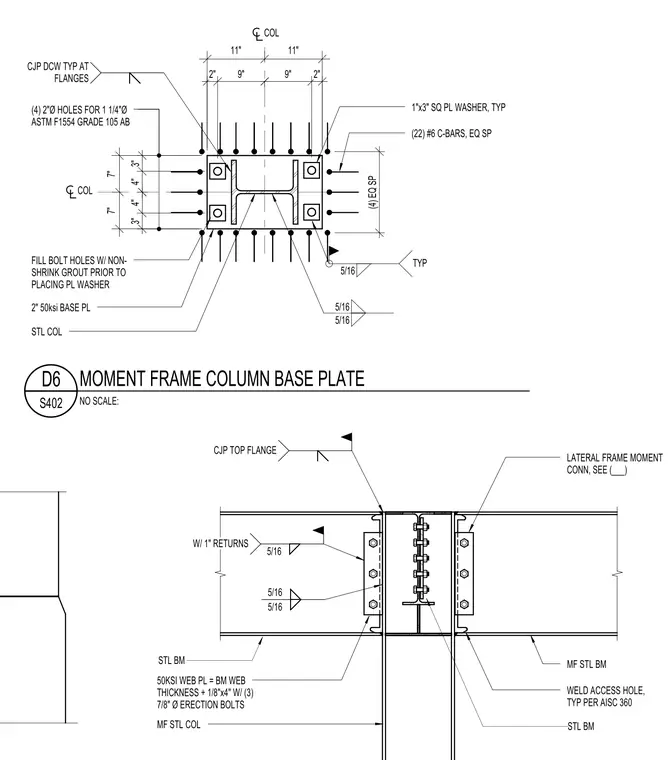

The steel column base plate is detailed with a two-inch-thick fifty ksi base plate secured by four two-inch diameter holes for one-and-one-quarter-inch diameter ASTM F1554 Grade 105 anchor bolts, complete with square plate washers and non-shrink grout filling the bolt holes. The surrounding concrete footing is reinforced with twenty-two number six C-bars equally spaced. The steel beam to moment frame column connection incorporates a fifty ksi web plate matching the beam web thickness plus one-eighth inch by four inches with three seven-eighths inch diameter erection bolts. Five-sixteenths inch fillet welds with one-inch returns and complete joint penetration welds at the top and bottom flanges secure the structural steel members, incorporating standard weld access holes per AISC 360.
STL BM STL BM MF STL BM MF STL COL WELD ACCESS HOLE, TYP PER AISC 360 50KSI WEB PL = BM WEB THICKNESS + 1/8"x4" W/ (3) 7/8" Ø ERECTION BOLTS LATERAL FRAME MOMENT CONN, SEE (___) 5/16 5/16 5/16 W/ 1" RETURNS CJP TOP FLANGE (4) 2"Ø HOLES FOR 1 1/4"Ø ASTM F1554 GRADE 105 AB 2" 50ksi BASE PL 1"x3" SQ PL WASHER, TYP 5/16 5/16 TYP 5/16 FILL BOLT HOLES W/ NON- SHRINK GROUT PRIOR TO PLACING PL WASHER COL COL STL COL 7" 7" 11" 11" 3" 4" 3" 4" 2" 9" 9" 2" CJP DCW TYP AT FLANGES (22) #6 C-BARS, EQ SP (4) EQ SP NO SCALE: S402 D6 MOMENT FRAME COLUMN BASE PLATE
