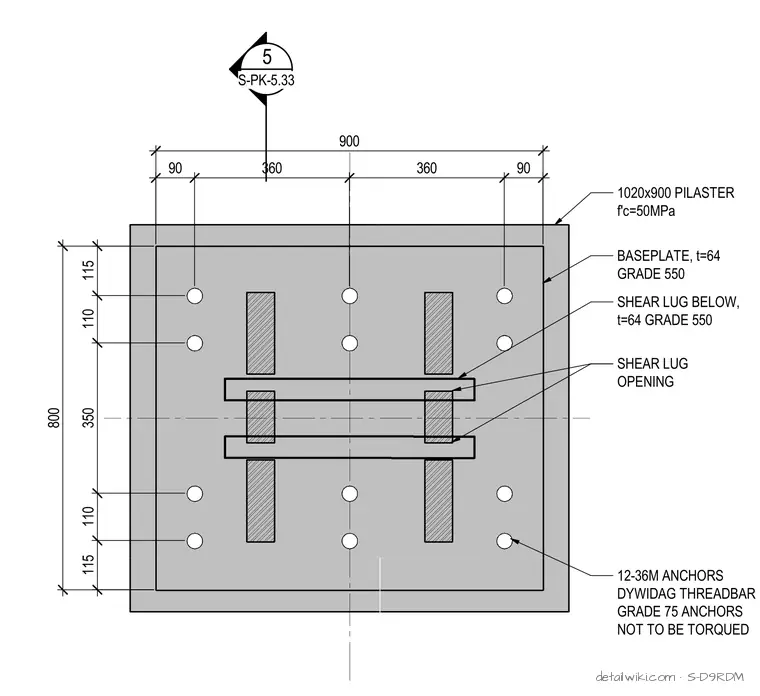

S-D9RDM — Baseplate 'Bp3'

Structural · S-D9RDM

Baseplate 'Bp3'

Units: imperial
Sheet: S-PK-5.33
Discipline: Structural

Materials

Elements

Anchors / Embeds Columns Connections / Plates Roof / Floor Openings

Connections

Base Plate / Anchorage

Text on the drawing

900 90 360 360 90 800 115 110 350 110 115 12-36M ANCHORS DYWIDAG THREADBAR GRADE 75 ANCHORS NOT TO BE TORQUED SHEAR LUG OPENING SHEAR LUG BELOW, t=64 GRADE 550 BASEPLATE, t=64 GRADE 550 1020x900 PILASTER f'c=50MPa 5 S-PK-5.33
