Structural · S-D9R7V

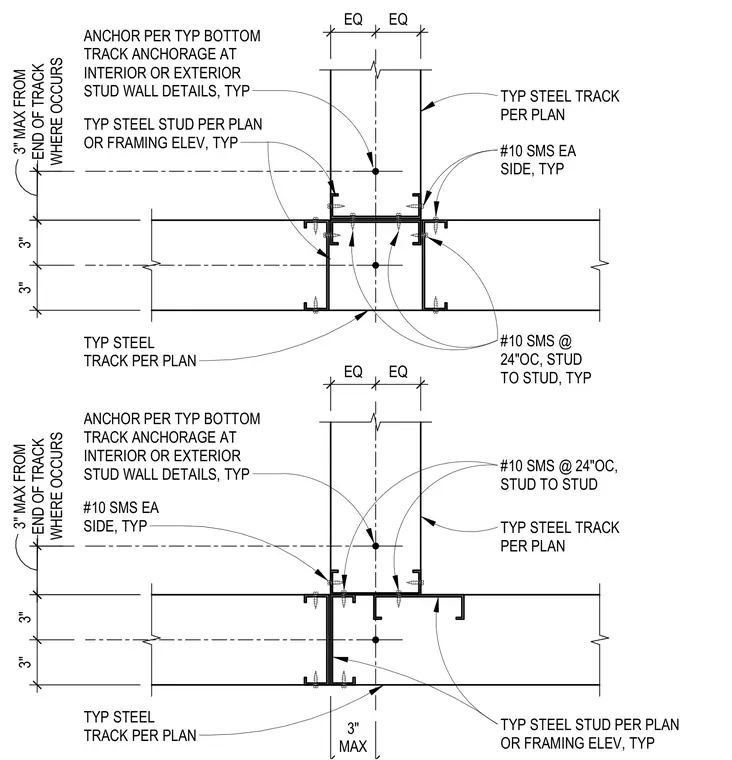

Typical Cold-Formed Steel Stud Wall Intersection

Materials

Steel Timber / Wood

Elements

Walls Anchors / Embeds

Connections

Base Plate / Anchorage

About this detail

Cold-formed steel stud wall intersections detail the connection between intersecting partition tracks and studs sized per plan or framing elevation. Vertical steel tracks receive typical track anchorage at interior or exterior conditions. Steel studs are secured with number ten sheet metal screws spaced at twenty-four inches on center on each side for stud-to-stud connections. Additional screw fasteners are placed within three inches maximum from the end of the track where occurs.
