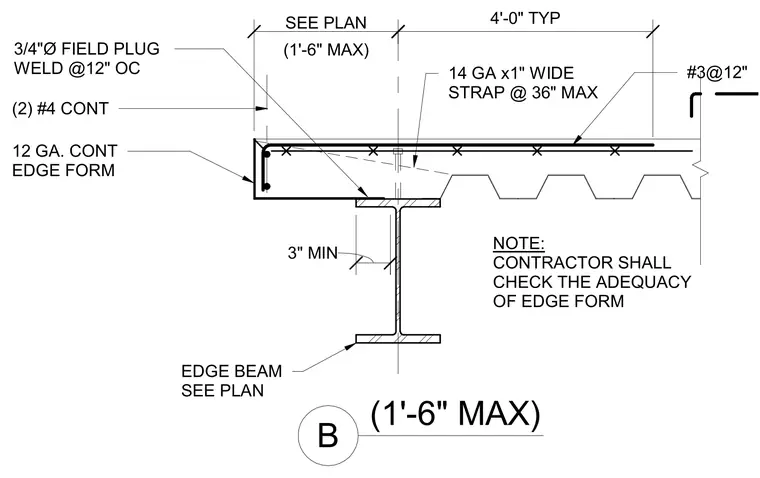

A metal deck bears on a structural steel edge beam with a minimum three-inch bearing width, secured by three-quarter-inch diameter field plug welds spaced at twelve inches on center. The concrete slab is retained by a twelve-gauge continuous steel edge form reinforced with two continuous number four bars and number three bars spaced at twelve inches. A fourteen-gauge by one-inch wide strap is spaced at a maximum of thirty-six inches on center. A note directs the contractor to check the adequacy of the edge form.
(1'-6" MAX) B #3@12" 12 GA. CONT EDGE FORM NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM 14 GA x1" WIDE STRAP @ 36" MAX (1'-6" MAX) SEE PLAN EDGE BEAM SEE PLAN 4'-0" TYP 3" MIN (2) #4 CONT 3/4"Ø FIELD PLUG WELD @12" OC
