Structural · S-D9NDE

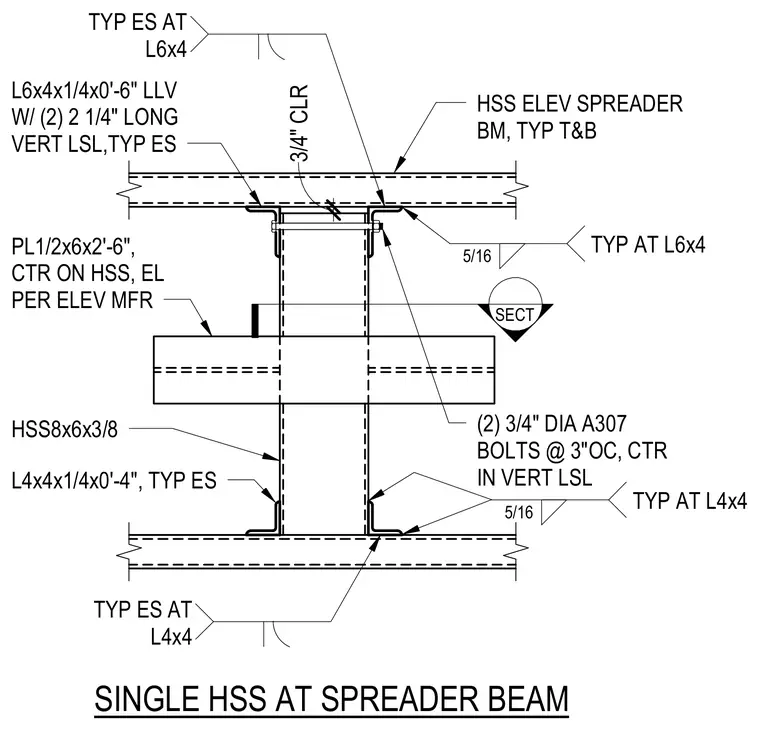

Single HSS at Spreader Beam

Materials

Steel Timber / Wood

Elements

Beams

Connections

HSS Connection Bolted Connection

About this detail

A hollow structural section column of size HSS 8x6x3/8 connects to a spreader beam with a three-quarter-inch clearance gap maintained at the top. The assembly features an L 6x4x1/4 by zero foot six inch long vertical laminated strand lumber member with two two-and-a-quarter-inch long vertical laminated strand lumber pieces typical each side. A plate measuring one-half by six by two feet six inches is centered on the hollow structural section at the elevation specified per the elevation manufacturer. Connection angles include L 4x4x1/4 by zero foot four inch pieces typical each side welded with five-sixteenth-inch fillet welds. Fasteners consist of two three-quarter-inch diameter A307 bolts at three inches on center, centered in the vertical laminated strand lumber.
