A steel beam connects to a timber beam using a bolted connection on one end, and bears on a twelve-inch by twelve-inch by one-half-inch steel cap plate with four three-quarter-inch diameter bolts typically. A one-quarter-inch fillet weld secures the assembly. Reference callouts point to a cantilevered steel beam connection on sheet S1.5 and a steel beam to wood beam connection on sheet S1.4.

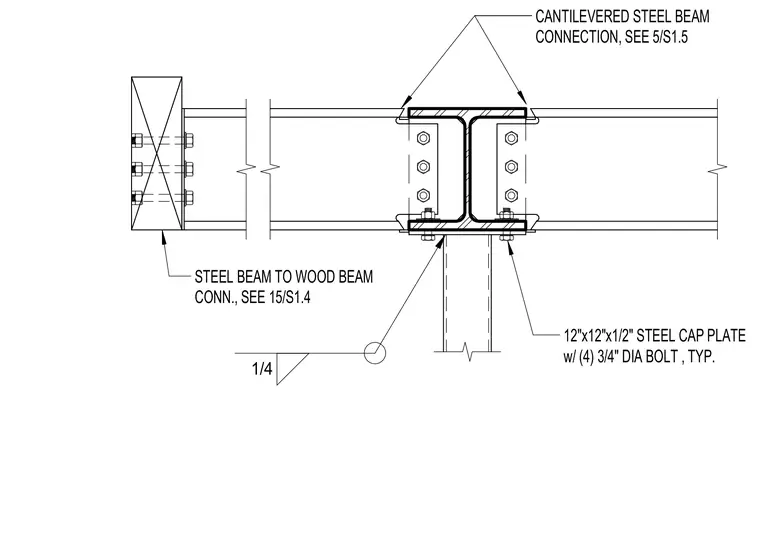

12"x12"x1/2" STEEL CAP PLATE w/ (4) 3/4" DIA BOLT , TYP. STEEL BEAM TO WOOD BEAM CONN., SEE 15/S1.4 CANTILEVERED STEEL BEAM CONNECTION, SEE 5/S1.5 1/4
