Structural · S-D97AK

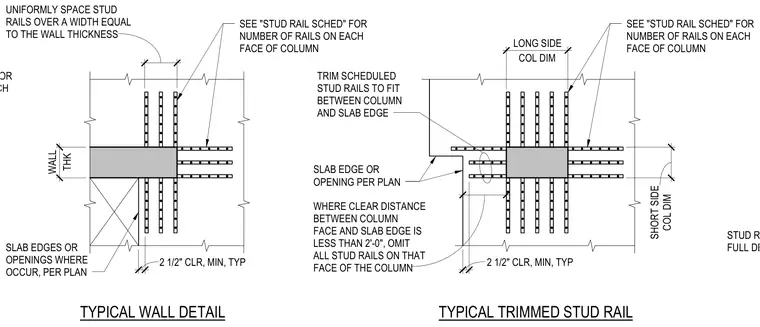

Typical Trimmed Stud Rail

Materials

Elements

Columns Walls Floors / Slabs Roof / Floor Openings

About this detail

Stud rails are uniformly spaced across a width equal to the wall thickness and arranged on each face of the concrete column as specified in the stud rail schedule. Scheduled stud rails are trimmed to fit between the column and slab edge or opening per plan. A minimum clear distance of two and one-half inches is maintained from the column face. Where the clear distance between the column face and slab edge is less than two feet, all stud rails on that particular face of the column are omitted.
