Structural · S-D92TD

Typical Duct Bracing Assembly

Materials

Steel

Elements

Bracing

Connections

Bracing Connection

About this detail

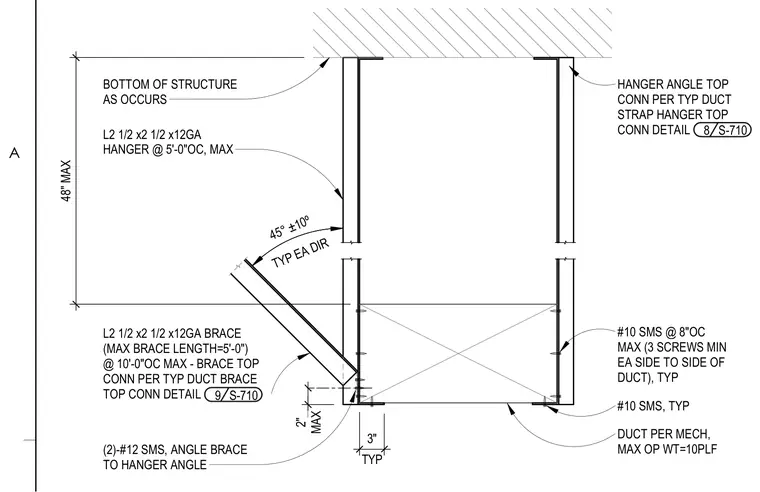

Mechanical ductwork with a maximum operating weight of ten pounds per linear foot is suspended from the bottom of the structure using L2 1/2 x 2 1/2 x 12-gauge hanger angles spaced at five feet on center maximum. Transverse and longitudinal lateral support is provided by L2 1/2 x 2 1/2 x 12-gauge angle braces with a maximum length of five feet and a maximum spacing of ten feet on center, installed at a forty-five degree angle plus or minus ten degrees in each direction. The angle brace connects to the hanger angle using two number twelve sheet metal screws. The duct attaches to the vertical hanger angles using number ten sheet metal screws at eight inches on center maximum with a minimum of three screws on each side.
