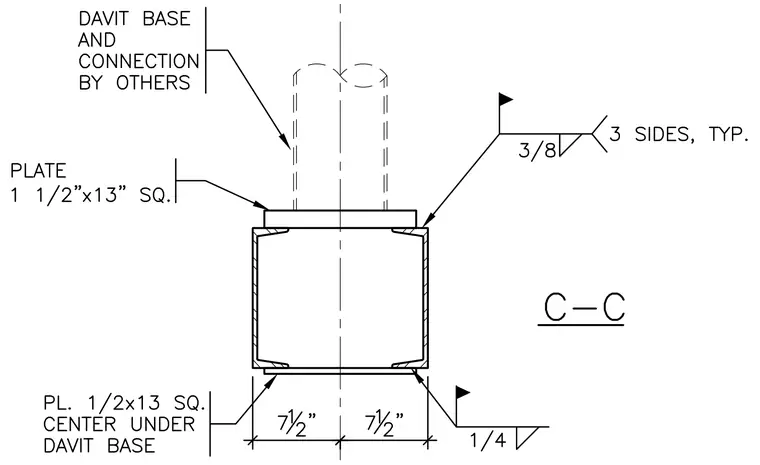

A square structural steel plate measuring 1-1/2 inches by 13 inches is welded to the top of a structural tube with a 3/8 inch fillet weld specified on three sides, typically. The davit base and its connection rest on this top plate and are provided by others. A bottom plate measuring 1/2 inch by 13 inches square is centered under the davit base and attached with a 1/4 inch fillet weld.
