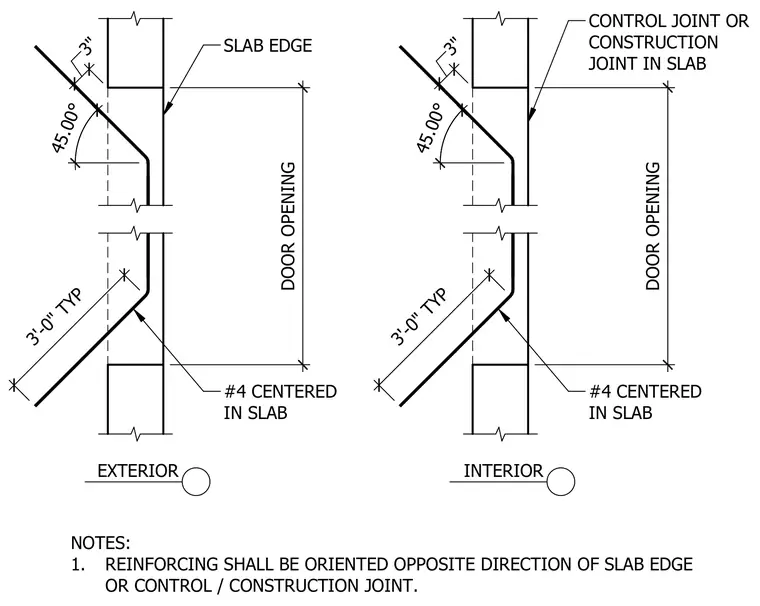

Concrete slab threshold reinforcing details for exterior and interior door openings feature diagonal reinforcing bars centered within the slab thickness. The layout incorporates a forty-five degree angle orientation extending three feet typically from the door opening edge. A control joint or construction joint intersects the slab edge adjacent to the opening. Reinforcing bars are oriented in the opposite direction of the slab edge or joint.
DOOR OPENING #4 CENTERED IN SLAB EXTERIOR INTERIOR CONTROL JOINT OR CONSTRUCTION JOINT IN SLAB SLAB EDGE NOTES: 1. REINFORCING SHALL BE ORIENTED OPPOSITE DIRECTION OF SLAB EDGE OR CONTROL / CONSTRUCTION JOINT. 45.00° 3" 3'-0" TYP DOOR OPENING #4 CENTERED IN SLAB 45.00° 3" 3'-0" TYP
