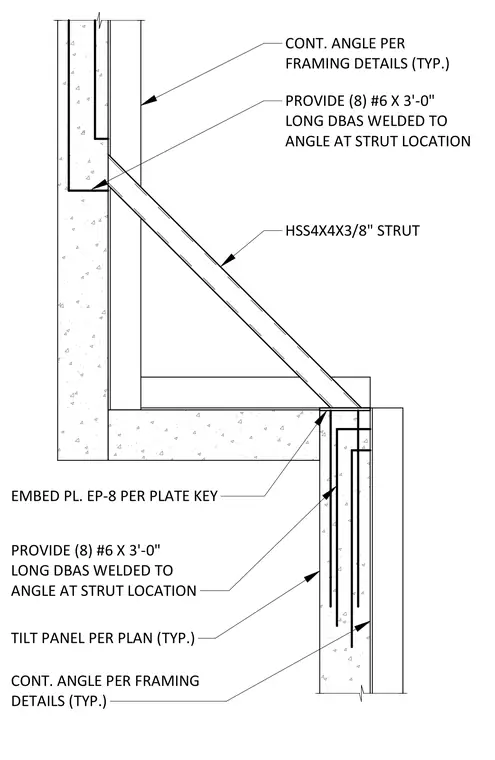

A hollow structural section strut measuring 4x4x3/8 inches spans between continuous angles at the tilt-up concrete panel and the supporting structure. Eight number 6 deformed bar anchors measuring 3 feet long are welded to the continuous angle at each strut location. Embedded plate EP-8 is provided per the plate key for anchoring. Continuous angles are detailed per the framing plans, tying the tilt-up panel back into the structural system.
CONT. ANGLE PER FRAMING DETAILS (TYP.) TILT PANEL PER PLAN (TYP.) HSS4X4X3/8" STRUT EMBED PL. EP-8 PER PLATE KEY PROVIDE (8) #6 X 3'-0" LONG DBAS WELDED TO ANGLE AT STRUT LOCATION CONT. ANGLE PER FRAMING DETAILS (TYP.) PROVIDE (8) #6 X 3'-0" LONG DBAS WELDED TO ANGLE AT STRUT LOCATION
